Defy

Downy FE

Downy Defy Damage is a line extension expanding the word of FE (fabric enhancers) beyond just sent and softness. If looks to add a level of care to the benefit. Protecting your clothes from stretching, fading, or fuzzing. This poses an provocative challenge for the package. It needs to communicate a new, while living within brand architectures. Both Downy and Unstoppable are iconic brands, Defy leverages the Downy endorsement while using Unstoppable’s form (beads).

Optimistic

The benefit is inherently hopeful. The product promises to help strengthen and prolong the life of your favorite clothes. Taking care to a new level.

Screenshot-2022-07-10-094157
Defy_Thumb

Future

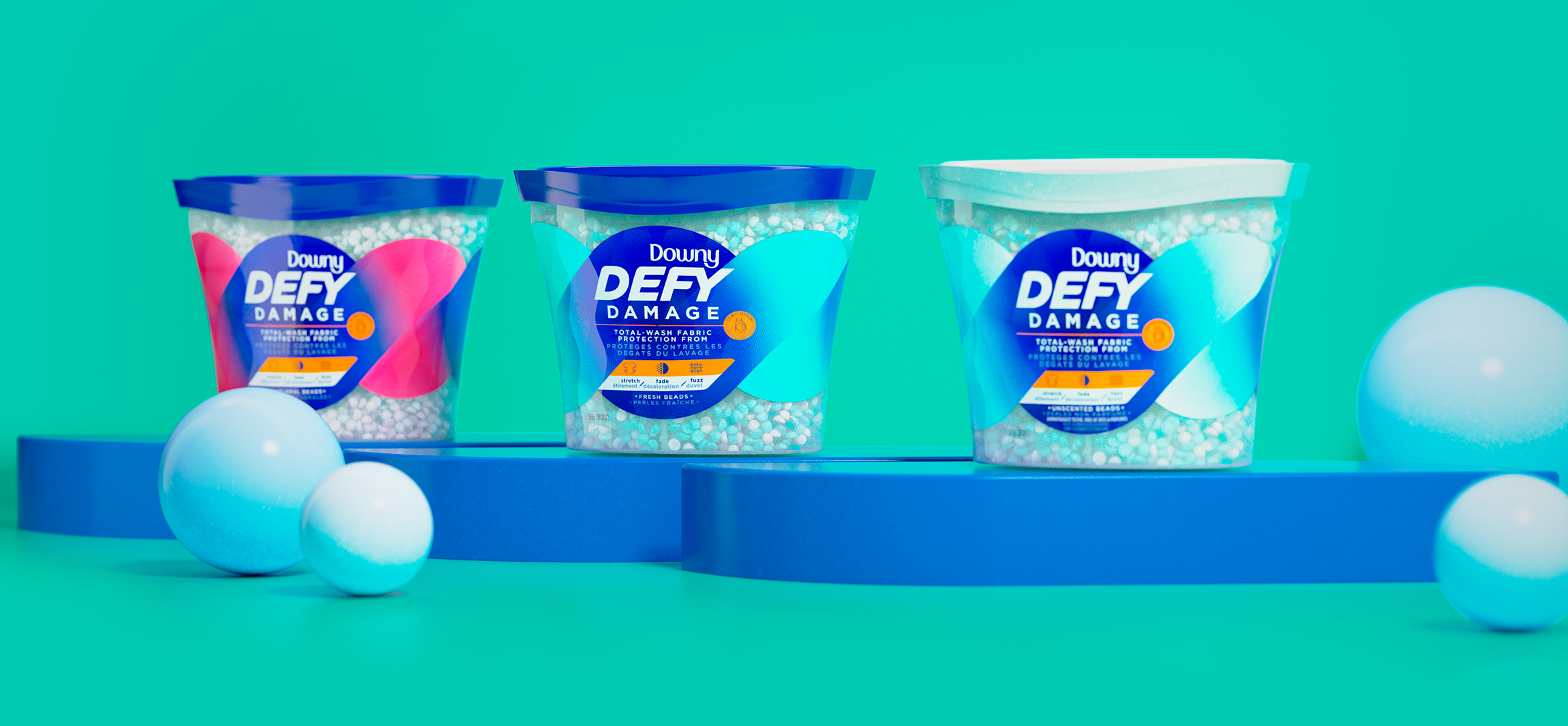

The promise is something consumers haven't seen before. It's a new way of caring for a garment. The package and the usage need to be new for the form to convey the benefit.

071122_Defy_LineUp2

Project Approach

Phase 0

Phase_1_Bar

Map out the opportunities and perceived constraints

Phase 1

Phase_2_Bar

Concept exploration
Mild to wild - pushing to the most disruptive solution possible

Phase 2

Phase_3_Bar_2

Refinement and detail exploration. Other usage opportunities

Phase 3

Phase_4_Bar_2

Delivery of detailed design intent. Working hand in hand with engineering

Brand Immersion - Category Extension

DOWNY

UNSTOPPABLES

DEFY

Phase 0

Considering the Fabric Enhancer category this new offering needed to be ownable while still having elements of the brands in the lineup. This manifested in leveraging the new Downy bottle pattern, and half of the uplifting waist from Unstoppables. The link to Unstoppables is important, Defy uses the same product form to deliver its fabric conditioning benefit

Skecth_over_LineUp_2
072822_Defy_Sketches15

Key Elements to Explore

The team broke down the tub into key functional elements. This provided a guide for consideration as the team explored shape. With the silhouette as a starting point, the interaction point of the cap and the depth dimension were important elements to focus on.

Phase 1

Leveraging the team's experience in the baby formula category. We were quickly able to start generating solutions to the tub. We had a keen understanding of usability. We understood the pain points around using the package. Such as one-handed opening, stackability, scoop placement, and accessibility.

Ideation

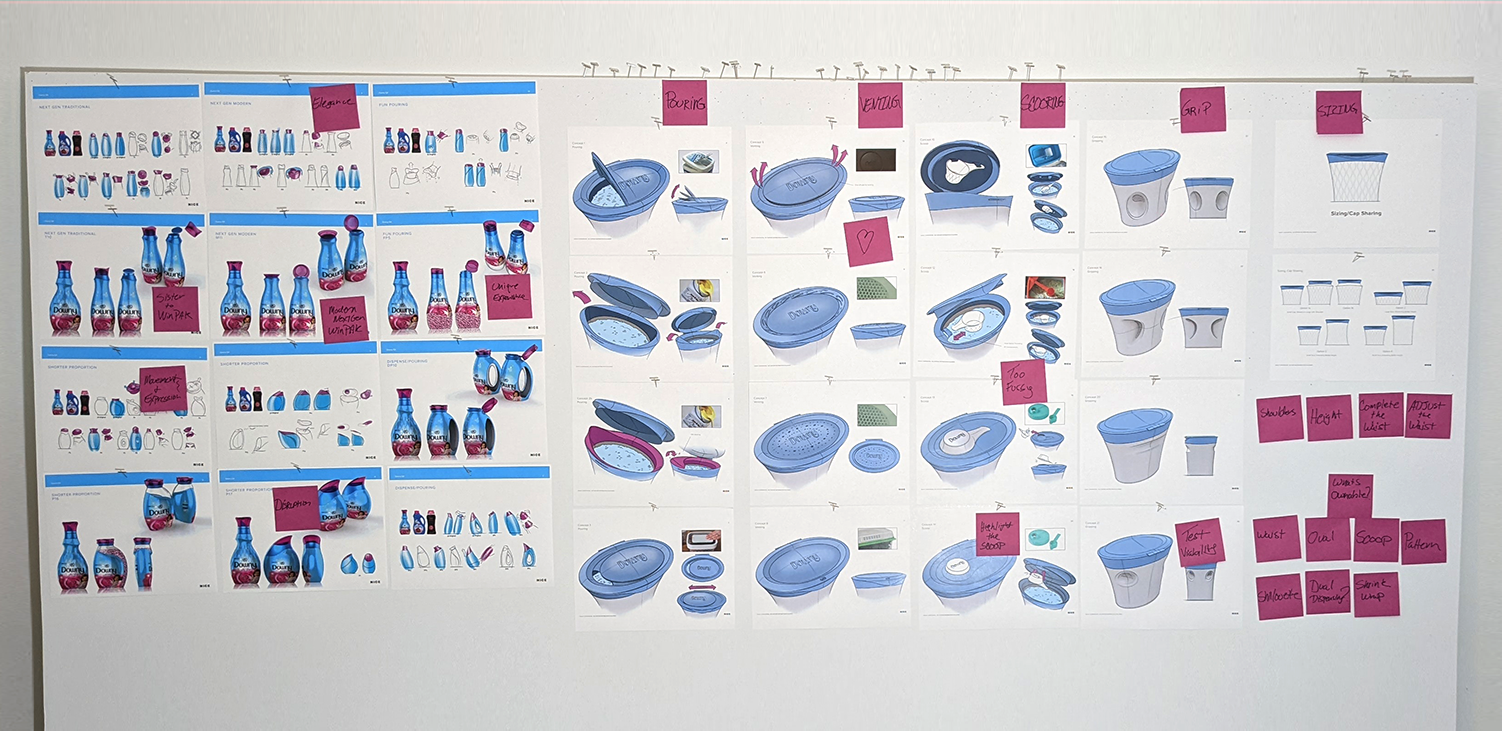

After isolating the functional opportunity spaces the team sorted the ideas and flagged the most promising ones. These concepts were then built upon and presented to the client in a collaborative session. When the client has an internal design capacity we leverage both their knowledge and skill to quickly develop concepts that deliver on the range of touch points need to make the design a success.

Process_Board_1_3

Concept Samples

Pouring?

Venting

Scoop

Grip

Phase 2

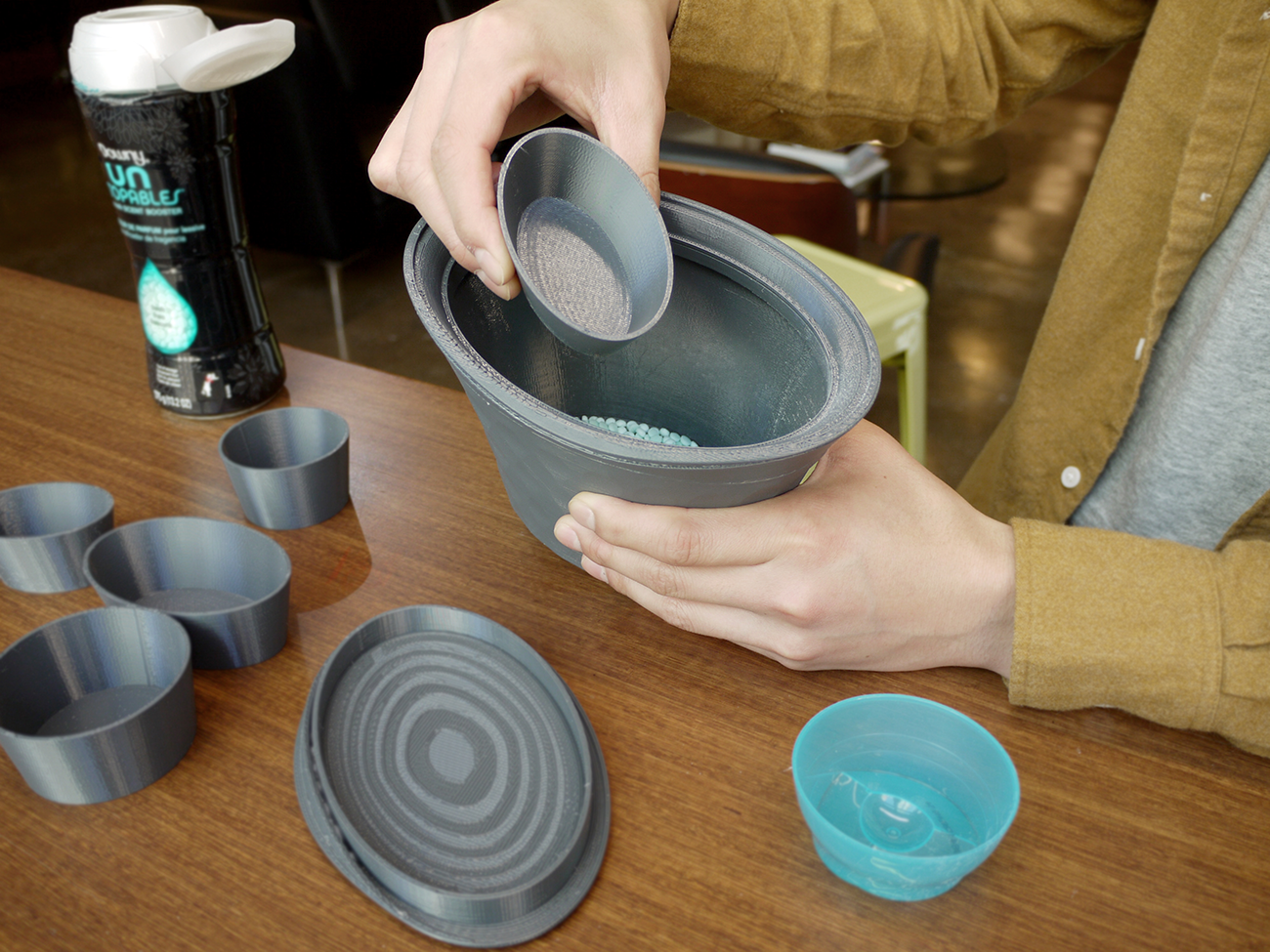

The team provided a range of solutions addressing the key functional elements. Collaborating with the client to identify and develop the fit for use that would dictate go-to-shelf design intent.  Early consumer research was performed to validate that tub was ownably different from Unsttoppables with its pour-to-dose cap.

P1090893_fixed
Process_Board_2_1

Key Learnings:

The tub is the preferred form factor
Scoop Volume was in flux and needed to be defined.
The lid assembly was a challenge and needs to be optimized
A strategy for sizing was needed as well.

Visualize Impact

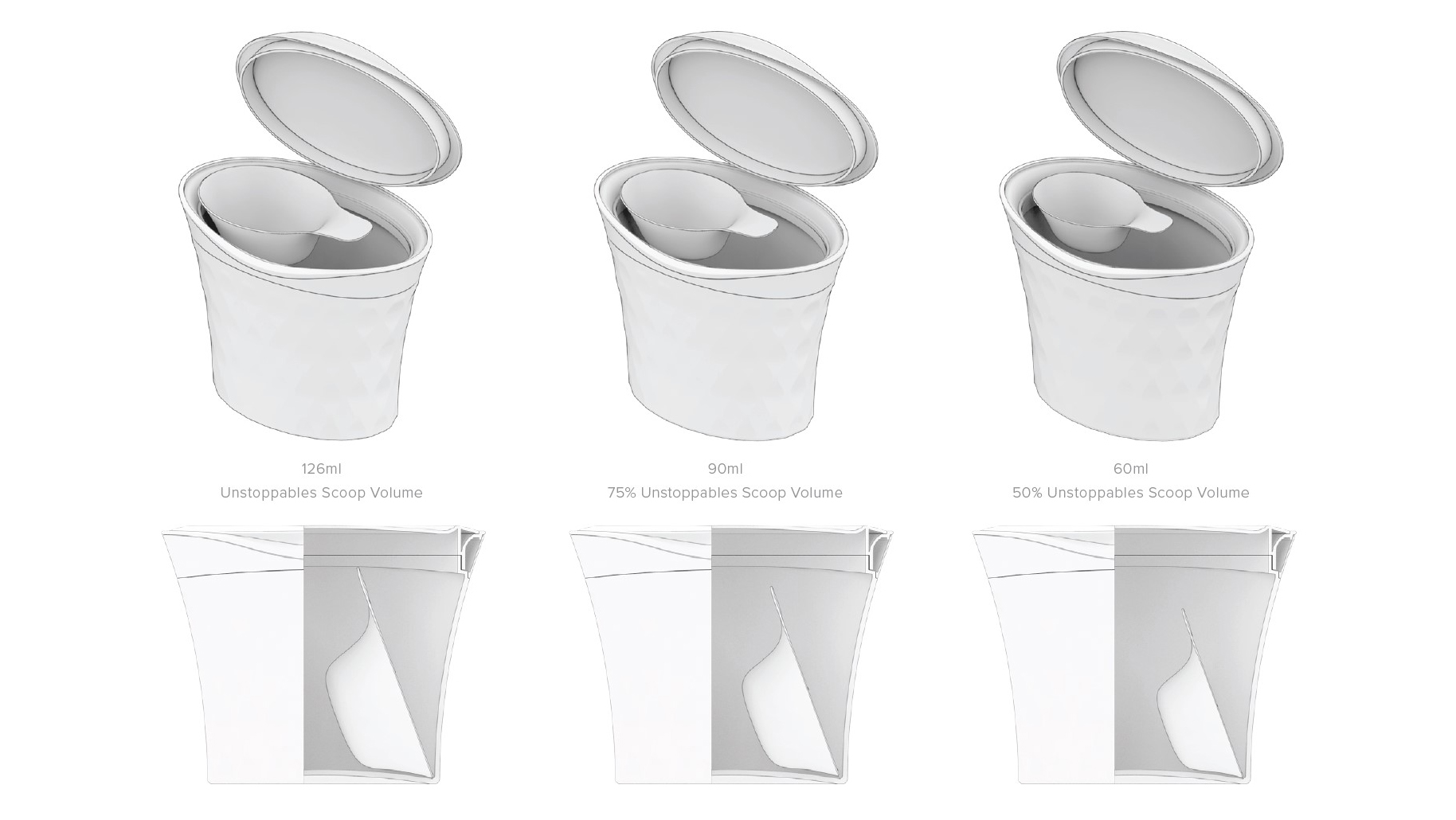

Unstoppables and Defy provide uniquely different benefits to the consumer. Unstoppables is about choosing what is right for you based on your preferred scent level. Defy is providing a functional benefit to the clothing as a fiber conditioner. The dosing then is a different experience. The team visualized the impact of changing that dosing mindset.  This volume also directly impacted size of pack as the larger the scoop/dose the larger the primary pack.

Unstoppables Volume

50% 60ml

75% 90ml

Sccop_Size_Impact

Phase 3

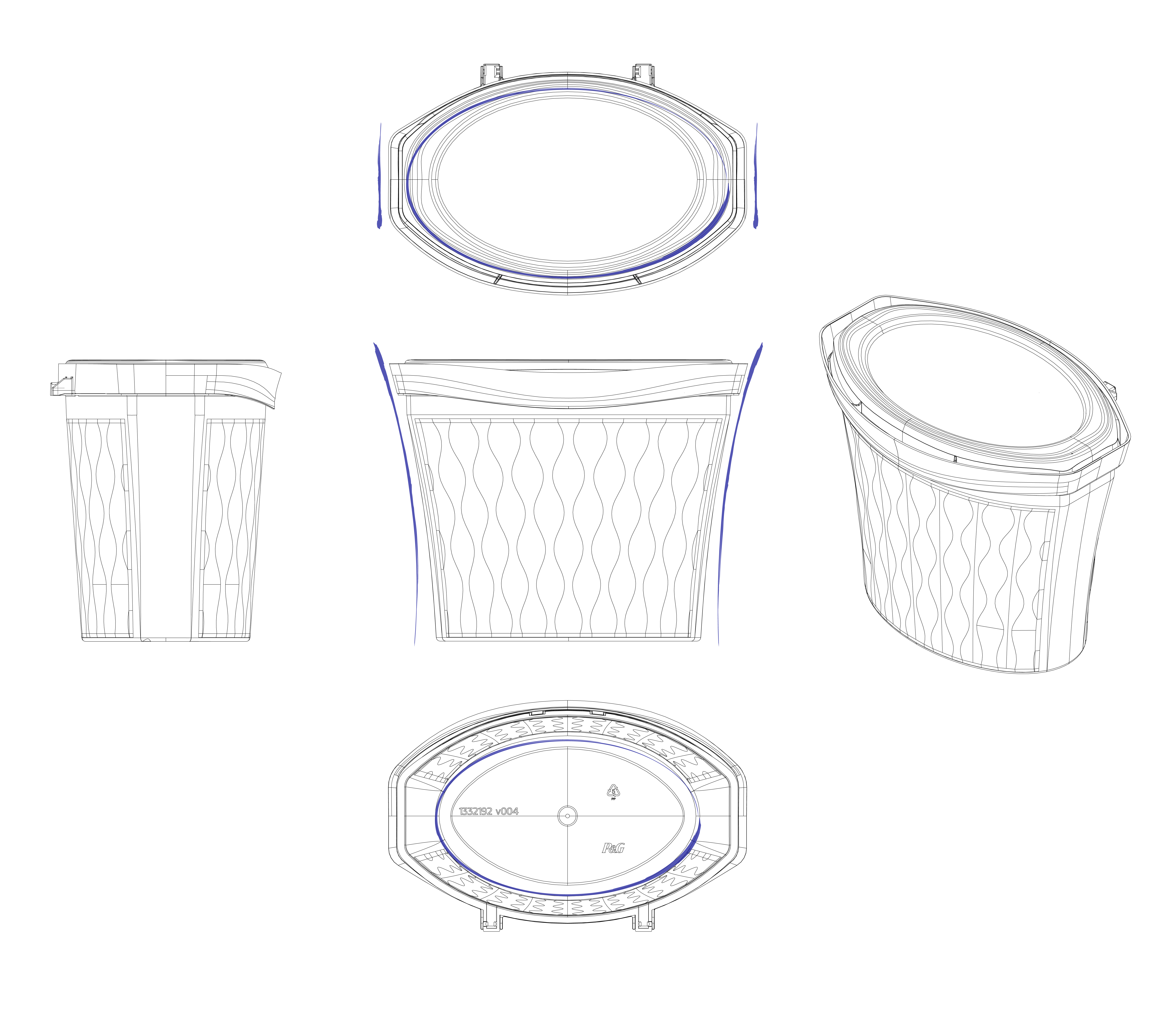

The work culminated with a series of collaborative exchanges with pack development and engineering. The team fought to keep the silhouette as it is the link to the product form.
In an effort to maintain the purity of the design intent the oval remained top and bottom, even as we navigated large touch flats for packing and conveying.

Stacking_Drawing_Updated-01
Stacking_Drawing_Updated-02

End to End

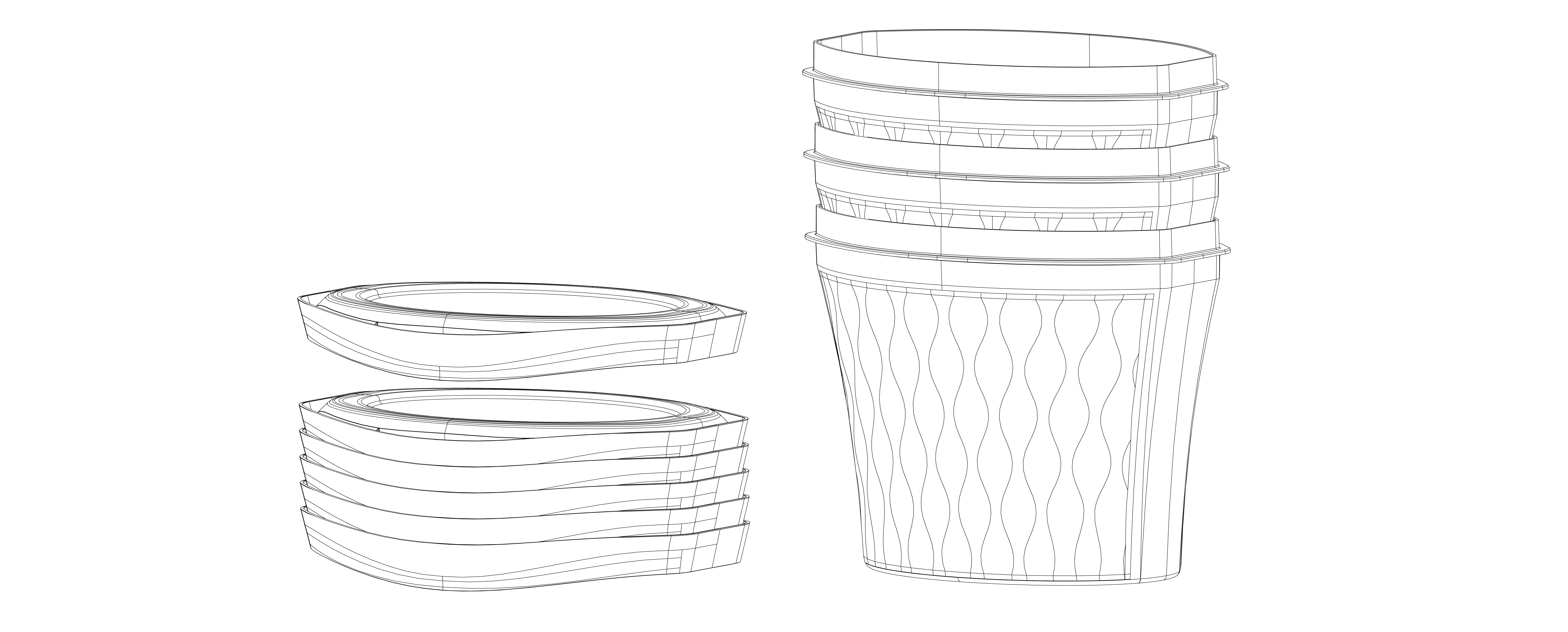

Problem-solving is part of every phase. A late-stage requirement was to make both the lid and the tub stackable. We used this as an opportunity to turn the flair in the cap into a skirt to keep plastic use as low as possible.
